Network Isolation and Domain Joined Machines




If you decide to build an environment in Lab Manager which has a server performing the domain controller role, when you are joining the machines to the domain make sure you don’t rename them.  If you do you will get “Additional Information” messages displayed about the state of those machines.

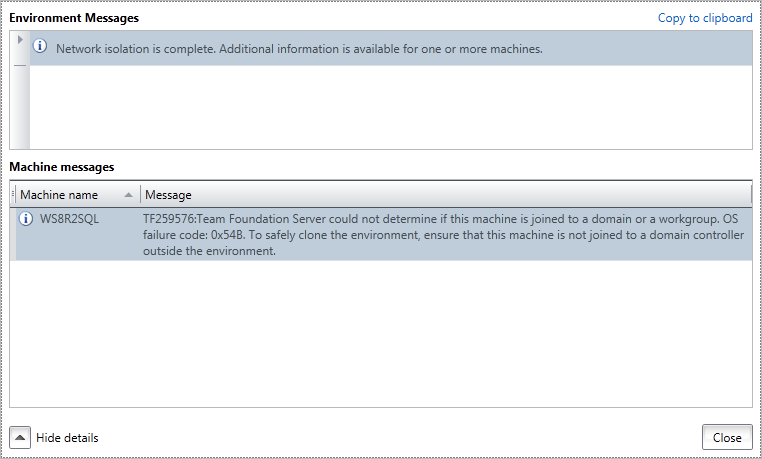

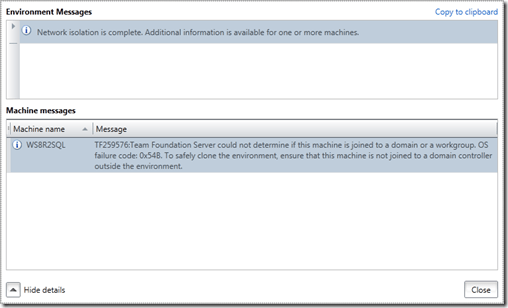

Environment Messages

Network isolation is complete. Additional information is available for one or more machines.

TF259576:Team Foundation Server could not determine if this machine is joined to a domain or a workgroup. OS failure code: 0x54B. To safely clone the environment, ensure that this machine is not joined to a domain controller outside the environment.

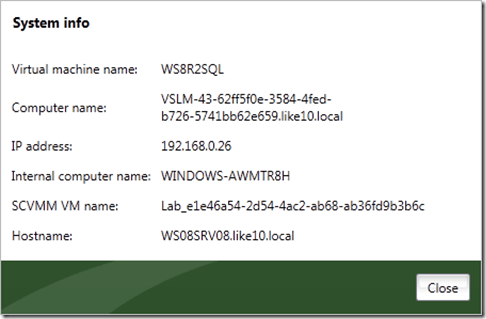

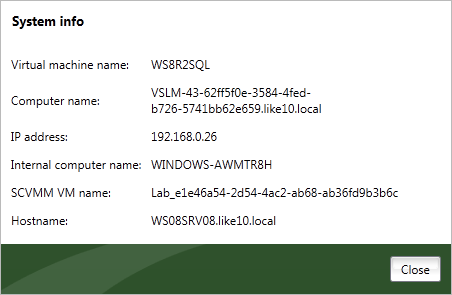

System Info

To obtain the external network aliases of a machine in a network-isolated environment (shown above)
  1. In Microsoft Test Manager, open Lab Center, and then click Lab.

  2. Connect to the environment using Environment Viewer.

    • Select the environment in the list.

    • Click Connect.

  3. In Environment Viewer, right-click the machine and choose System Info.

    • The Computer name field displays the fully qualified name of the machine on the external network.

    • The IP address displays the IP address on the external network.

About wesmacdonald

Wes MacDonald is a Visual Studio ALM MVP, PSD, MCT and a Principal Consultant for LIKE 10 INC., a SharePoint Server, Visual Studio and Team Foundation Server Consulting Firm providing premium support and guidance services.

4 Responses to “Network Isolation and Domain Joined Machines”

  1. Not sure if this post really contains any information on how to resolve the issue. It just tells what may be a potential cause of the issue.

Trackbacks/Pingbacks

  1. February 10, 2011 – VS/TFS Links and Quick Hits | Learn TFS - February 10, 2011

    […] Network Isolation and Domain Joined Machines from Wes MacDonald – Wes provides some details on how to overcome an issue you might encounter when joining machines to a domain in a Lab Management environment that has a domain controller. The specific error, for those that might have gotten here from a search engine, is TF259576: Team Foundation Server could not determine if this machine is joined to a domain or a workgroup. Wes has your fix. […]

  2. Links–02/22/2011 « Team System Rocks! - February 22, 2011

    […] Network Isolation and Domain joined Machines […]
