SharePoint 2010 MP for SCOM 2007 R2




If you are planning an install of SCOM 2007 R2 to monitor your SharePoint 2010 environment (either Foundation or Server) these links will be invaluable to you:



A few points to make your life easier:

Make sure you download the SharePoint MP from Microsoft downloads and import it and not through SCOM otherwise you will not have the SharePointMP.config file which is required to configure the SharePoint Management Pack.

SharePointMP.config

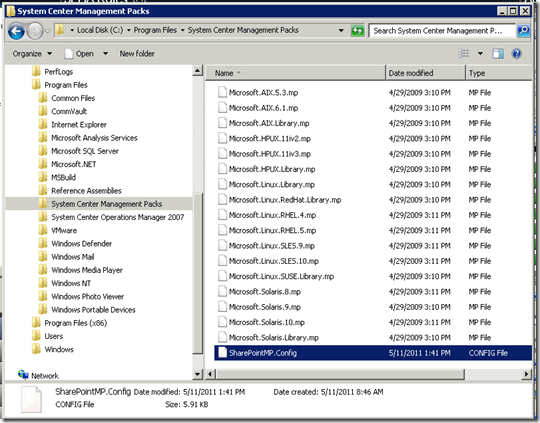

The configuration task expects to find the SharePointMP.config in the “C:\Program Files\System Center Management Packs” folder.  Additional configuration is required to monitor the additional services in SharePoint Server.

Make sure the SharePoint Farm Administrator Account used by SCOM is titled “SharePoint Discovery/Monitoring Account”

SharePoint Discovery/Monitoring Account

otherwise the configuration task will fail, it goes without saying that the account MUST be in the Farm Administrators Group.

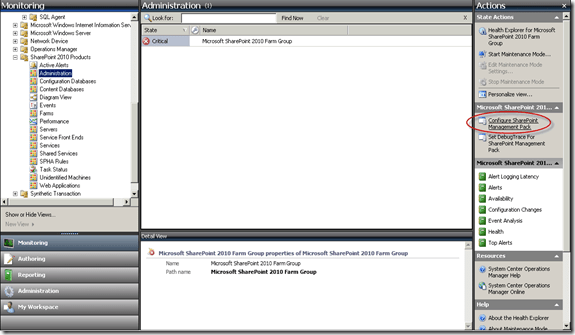

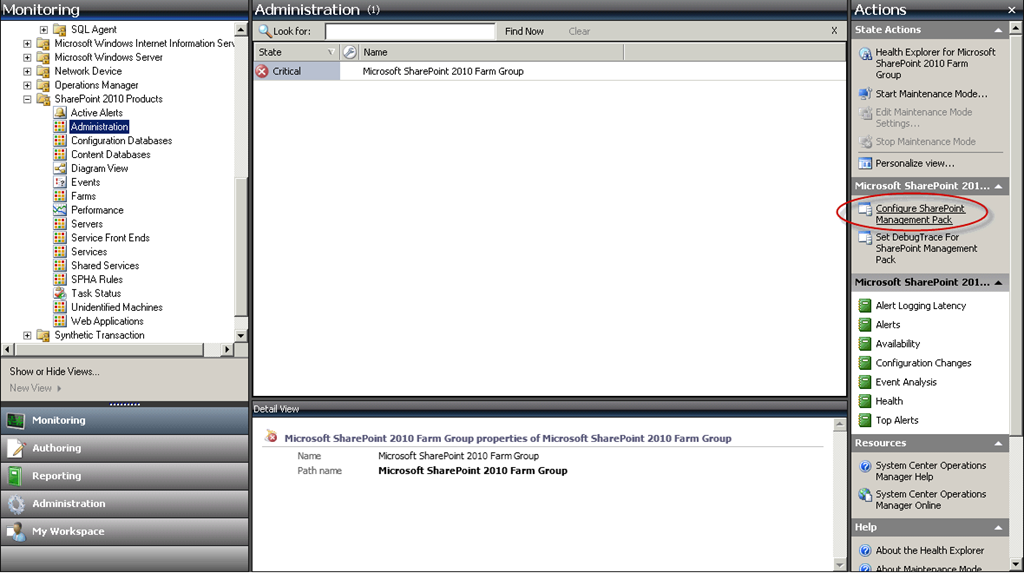

You start the configuration task in SCOM by clicking the link circled red below which will appear in the right sidebar when you have the “Administration” view selected under the “SharePoint 2010 Products” MP.


If you need more details I would definitely encourage you to check out these great blog posts on TechNet:

About wesmacdonald

Wes MacDonald is a Visual Studio ALM MVP, MCT, MCTS, MCITP (SharePoint) and a Principal Consultant for LIKE 10 INC., a SharePoint Server, Visual Studio and Team Foundation Server Consulting Firm providing premium support and guidance services.

3 Responses to “SharePoint 2010 MP for SCOM 2007 R2”

  1. i will try it
    Thanks

  2. OK, followed the instructions by heart, ran discovery, all succesful but stil the view in OPs COnsole for SPS 2010 machines is stil coming as “Not Monitored”. Other configurations I did:

    a.) Made SCOM Action account a Farm Admin.
    b.) Turned Agent Proxy on for all SPS servers running SCOM Agent.
    c.) Config file has correct machine names in there.
    d.) IPV6 is disabled.

    Am I missing Anything?

    Kapil Dham

    • What account have you configured in your Run As? You have to make sure the SharePoint 2010 Farm Administrator Account used by SCOM is titled “SharePoint Discovery/Monitoring Account” as I have pictured above.
